<< Click to Display Table of Contents >> Current:  Schedules Task > Task  Incremental Import Data to Data Mart

Incremental Import Data to Data Mart:Generate data mart files on a regular basis based on certain conditions

When execute"Incremental Import Data to Data Mart", corresponding folders and file prefixes will be generated in cloud folder with the same level of  bihome by default. Illustrate with actual examples. Since the data in the database may be changed, the user can create incremental import data tasks, monitor the data in specific data set at eight o'clock every day so that the user can handle timely. After setting the task, files with specified file prefix can be generated to a user specified folder at eight o'clock every day. This file is loaded with database query information through which the user can understand the data changes. .

➢Description:The user needs to change c\:/cloud to the user's own path, and change the IP to the user's host IP address.

The steps to create new "Incremental Import Data to Data Mart" are as follows:

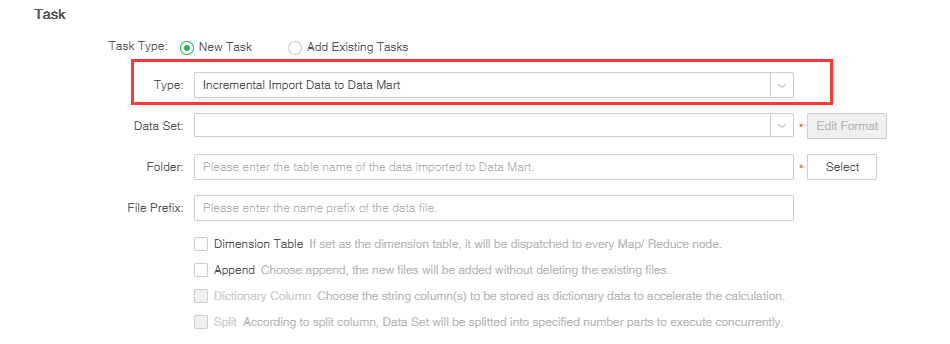

1.1.1The first way: In the task area of the new job or the New Task screen, select the task type "Incremental Import Data to Data Mart" as shown in the figure below.

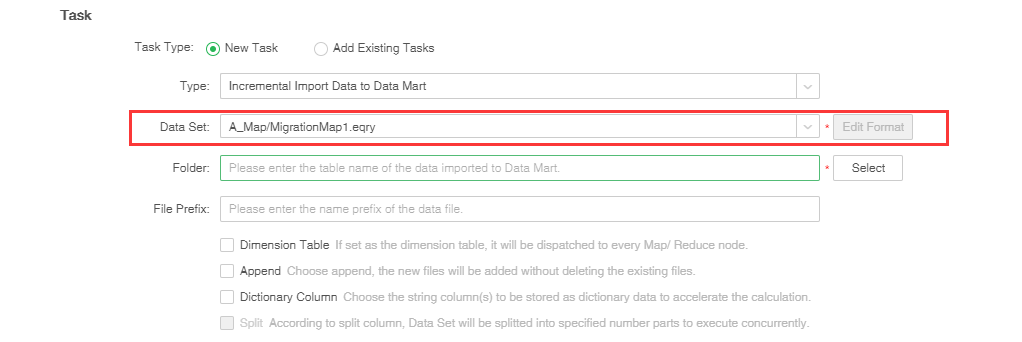

1.1.2.In the data set list, select the existing data set.

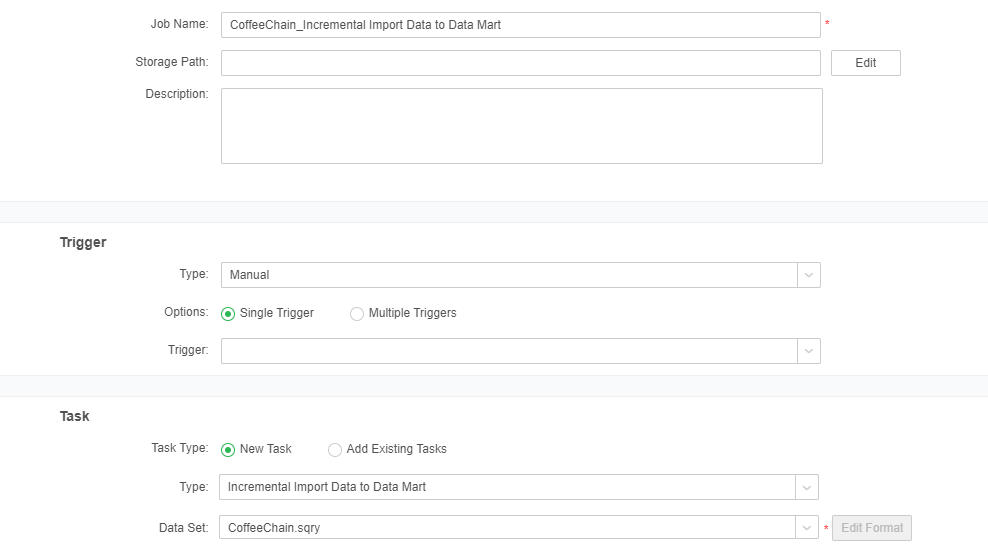

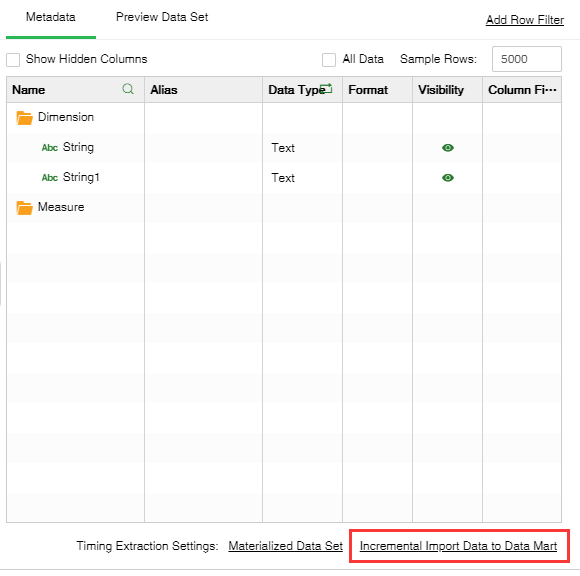

1.2.the second way:open Create Data Setselect the task type "Incremental Import Data to Data Mart" as shown in the figure below.The system will automatically creates an incremental import job for the dataset and jumps to the scheduling task interface.

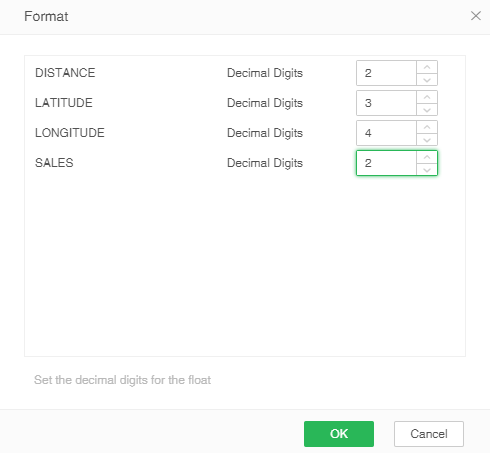

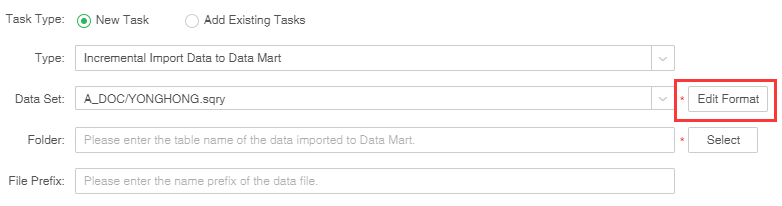

2.In version 8.5, we update the data precision so that there is no precision problem when calculated large amounts of data,  the number of precision bits supprot setting. Click the Edit Format button on the right side of the dataset to display the double, float type data columns in the dataset, and set the storage precision on the market folder. Different market folders can have different precisions, Double, float type data column default value is 4，as shown in the figure below.

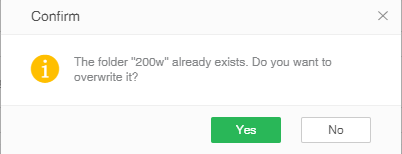

3.Enter the name of the data mart folder generated by incremental import data or select the generated data mart folder. It is a mandatory item. When the user enters or selects an existing data mart folder, the system will specify duplication prompts based on whether it is Append or not to prevent the user from covering the existing data mart folders in unknown situation, deleting the existing data mart files which will lead to data loss. As shown in the figure below:

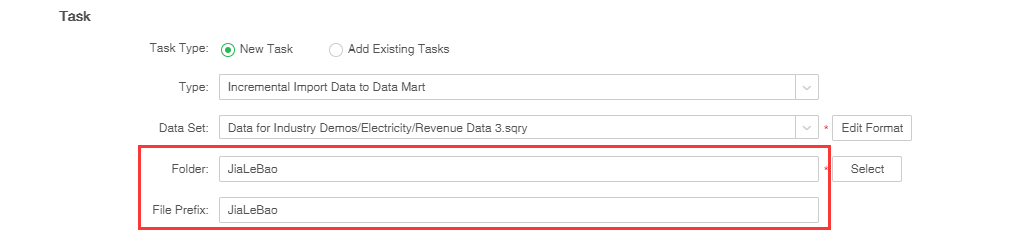

4.Set the name of the file that will be used to generate "Incremental Import Data to Data Mart".

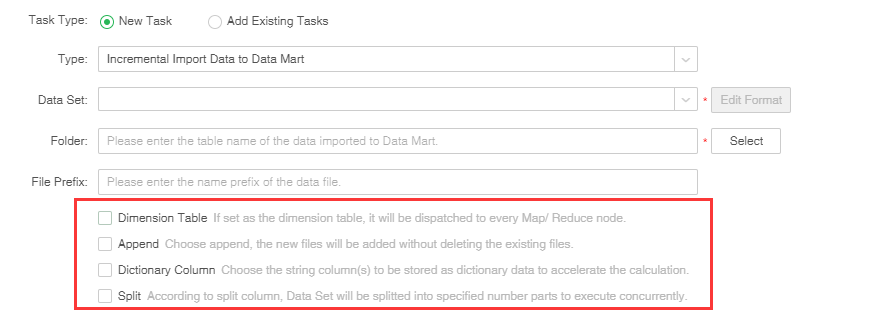

5.Set other properties.

[Dimension table] When the user clicks Dimension table, for star data of distributed system (one large table and several small tables), the data in small tables can be duplicated to each Map Node. Execute Map side join to improve data reading and processing speed.

[Append] If you select this, the generated data mart file names will be sorted. If the user creates an incremental import data task, that is, collect the data of certain data set at 8 o'clock to generate a data mart file. A file named test 0 will be generated at the first day, and a file named test 1 will be generated at the second day, and so on.

If the user doesn't click Append, and if the mart folder exists in current system, a new data mart folder will be created instead. If the user creates an incremental import data task, that is, collect the data of certain data set at 8 o'clock to generate a data mart file. The files generated at the first day will be put to folder 0, and a new data mart folder folder0 will be generated at the 2nd date to cover existing folders and files.

[Dictionary column] When the user chooses to store string columns in a dictionary data format, the system will map the specified string column to Numerical data. The calculation and grouping of string column are carried out via numeric data thus to speed up the treatment and reduce memory occupation. When the system returns to the final result, the numerical value will be reduced to corresponding string.

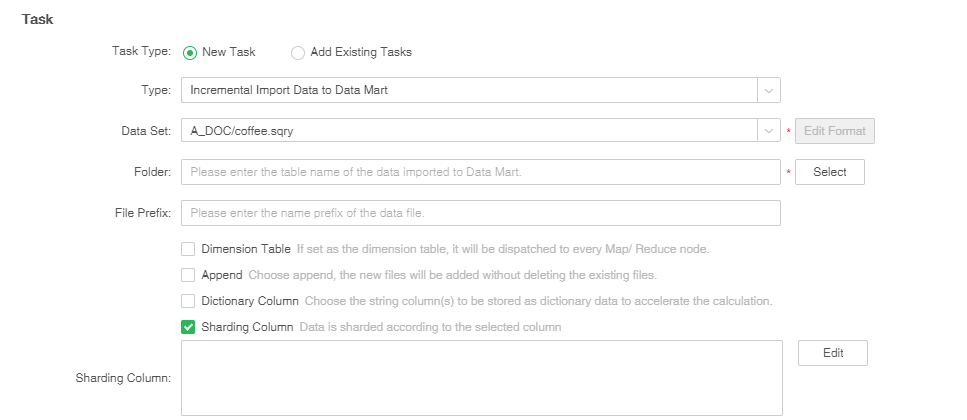

[Sharding column] The data column is stored in a consistent hash mode. When the user checks the fragmentation column, the fragmentation column dialog box will pop up automatically.



When two data sets are imported into the market incrementally, the number of columns is selected after checking the fragmented columns; when the types of columns are matched, the fragmentation is used as the link condition, and the Mapsidejoin can be realized in combination.

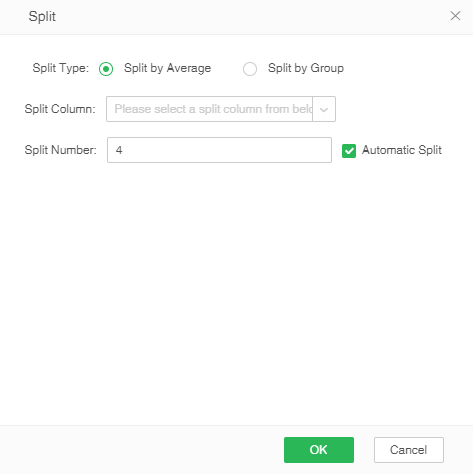

[Split] Implement split by column, and import the data to the mart in parallel. When the user clicks partition, partition dialog box will pop up automatically. Split type includes "Split by Average"  and "Split by Group". Only one  split column can be chosen for "Split by Average", and the split number should be integer.The default is automatic splitting, and the number of splits is input by the user, The default is 4，as shown in the figure below.



When canceling the automatic splitting, the user can manually input the split value. The manual splitting is to group the data according to the split value, and then the grouped data is stored in zb, and the number of zb is set to divide the number of copies, and it is necessary to pay attention to the input form. When dividing the value, if the number of split values exceeds the range of [n-1, n+1], click the OK button and the prompt message is as follows: The custom split value can only be set in [n-1, n+1] For the range, delete the split value of the number of extra lines.

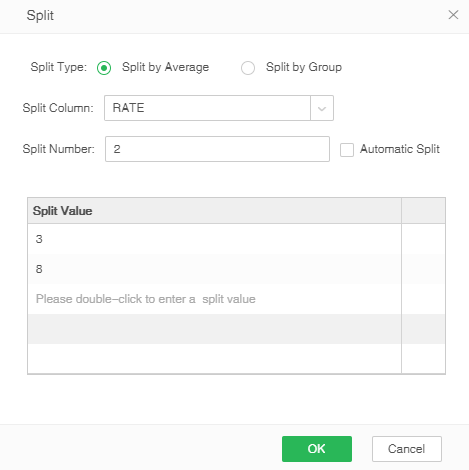

As shown in the figure below, divide the Double column and divide it according to Double<3 ; 3≤ Double ≤8 ; Double>8 ; Double is empty, and divide the number of copies into 2 copies.

For example: 3. "Split by Group" cannot fill in the split number. You can select multiple split columns. In order not to impact the efficiency of importing data, suggest that the number of split column is no more than 10. "Split by Group" can automatically generate Meta information to facilitate data filtration in data mart. Where, the key in Meta is the corresponding column name of split column, and the value in Meta is the corresponding value of split column. When the user does not click split, the data mart files will be generated according to the system default settings.

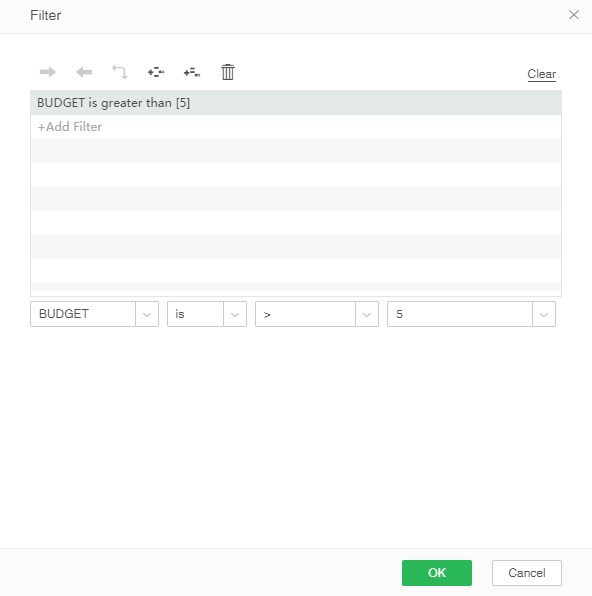

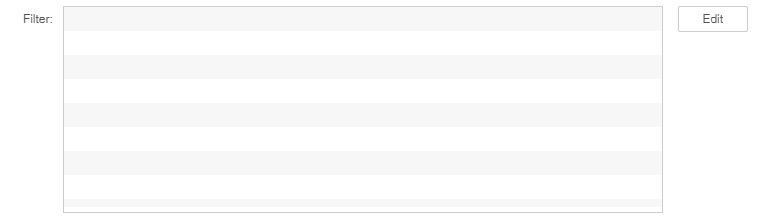

6. Set filter conditions. Click [Edit] button to pop up the filter dialog box, click to increase the filter conditions, select the column that needs to set the filter, as shown below. The system will only perform incremental import actions on data that meets the filter criteria.



Users can control the incremental import data through scripts. The user can set the names of the data mart files and data mart folders, pass parameters, append, and set properties of the data mart files through scripts. When this task is performed, the script has the highest priority.

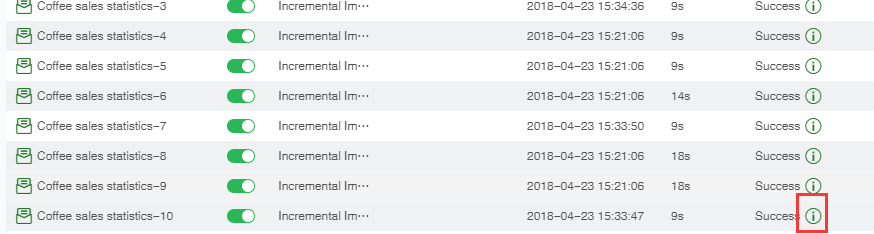

7. When the job type is "Incremental Import Data to Data Mart" and the operation is successful, after the result of the current job interface and history job interface is "successful", an icon of the data file dialog box that can trigger the import to the market will appear.

The system will automatically add time information to the data which is successfully imported into the market. Information format: "Job triggering time _ job name". For the data set in the new data mart, all data imported to the mart can be filtered via Meta information.



❖Delete additional incremental data

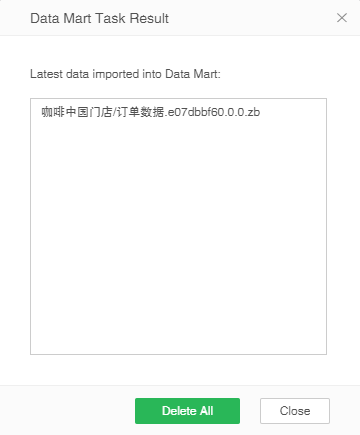

In the  job status page, the user is allowed to delete the data successfully imported to the mart at the last time, and reserve the imported data. If the user consecutively import data to the mart via Append mode, and data error occurred while being imported to the mart for the second time, the user can find the corresponding job execution record in the historical job status page, open the task running result dialog box, delete the data imported to the mart, and remain the other data.
